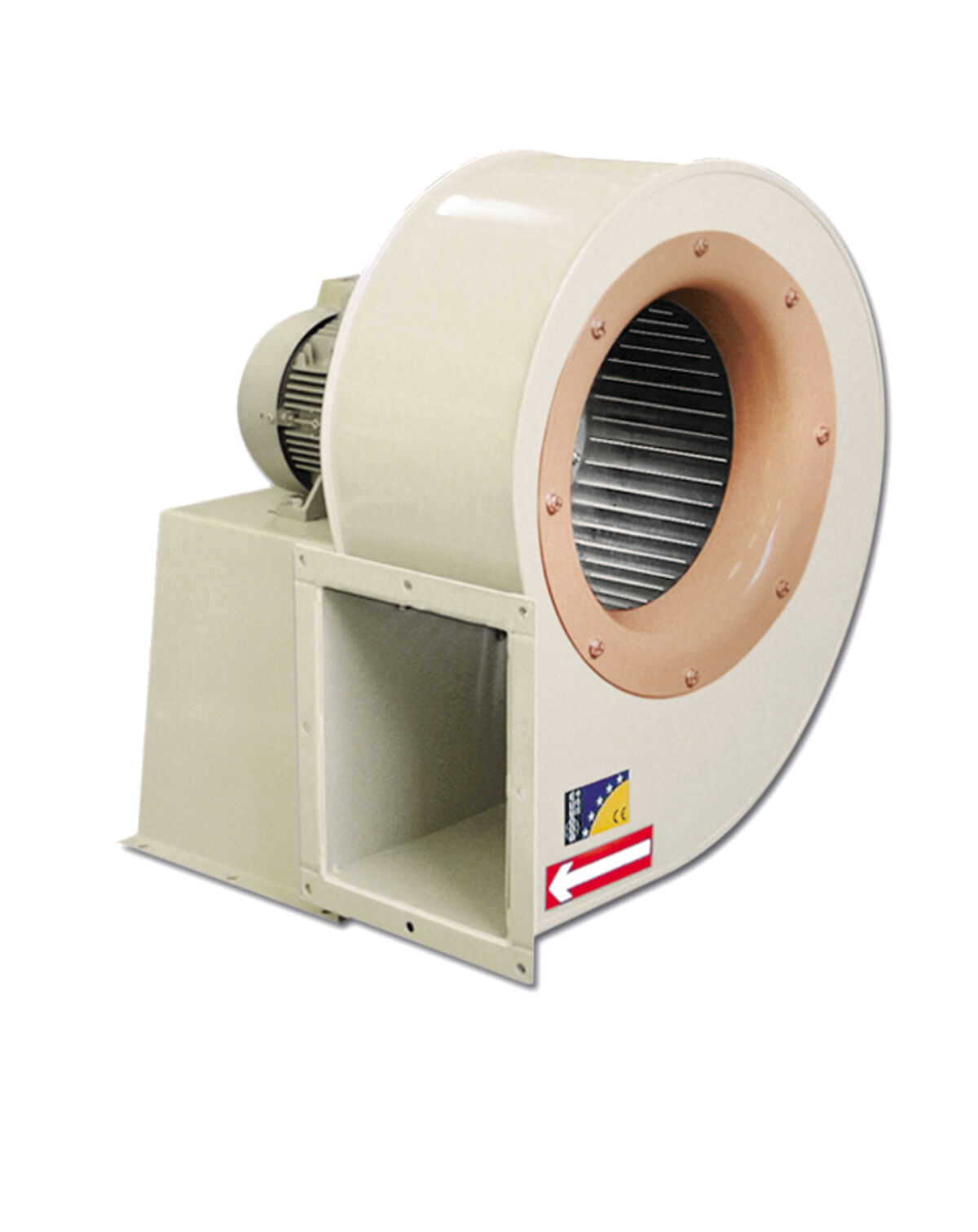

CMP - Centrifugal fans

Centrifugal. medium pressure. single-inlet fans with sheet steel casing and impeller

Main Features
  •  Sheet steel casing
  • Impeller with forward-curved blades made of galvanised sheet steel
  • CMP 38-2M model casing in cast aluminium
  • Maximum temperature of air to be carried: -20ºC + 120ºC. maximum +100ºC model CMP-38.


Manufactured to Order

£POA

Excluding delivery cost, optional installation and on-site training.

Manufacturer:Sodeca

Description & Features

A medium prssured, robust centred, dynamically balanced, centrifugal fan with a single inlet, casing and sheet steel impeller.

Properties

  • IE3 efficiency motors for powers equal to or greater than 0.75kW except single-phase
  • 2-speed and 8-pole.- Class F motors with ball bearings and IP55 protection except single-phase models, with IP54 protection.
  • CMP-38 model with IP21 protection
  • Single-phase 230V-50Hz and three-phase 230/400V-50Hz (up to 4kW) and 400/690V-50Hz (powers higher than 4kW)
  • Anticorrosive finish of polyester resin polymerised at 190ºC. previously degreased with phosphate-free nanotechnological treatment.

Technical Data

The CMP - Centrifugal fans is available in a number of configurations, detailed below. More may be available, so please call Flextraction on 01664 410 641 to discuss your requirements.

Speed (r/min)Power (kW)Max Airflow (m3/h)Sound dB(A)Approx Weight (Kg)
CMP-38-2M-E26500.01135502.0
CMP-38-2M26000.01160502.0
CMP-512-4T13200.06255553.5
CMP-512-4M13600.06255553.5
CMP-616-2T27600.551380698.0
CMP-616-4T13200.12850617.5
CMP-922-4T13800.5524506619.0
CMP-1640-6T9552.2081007175.5
