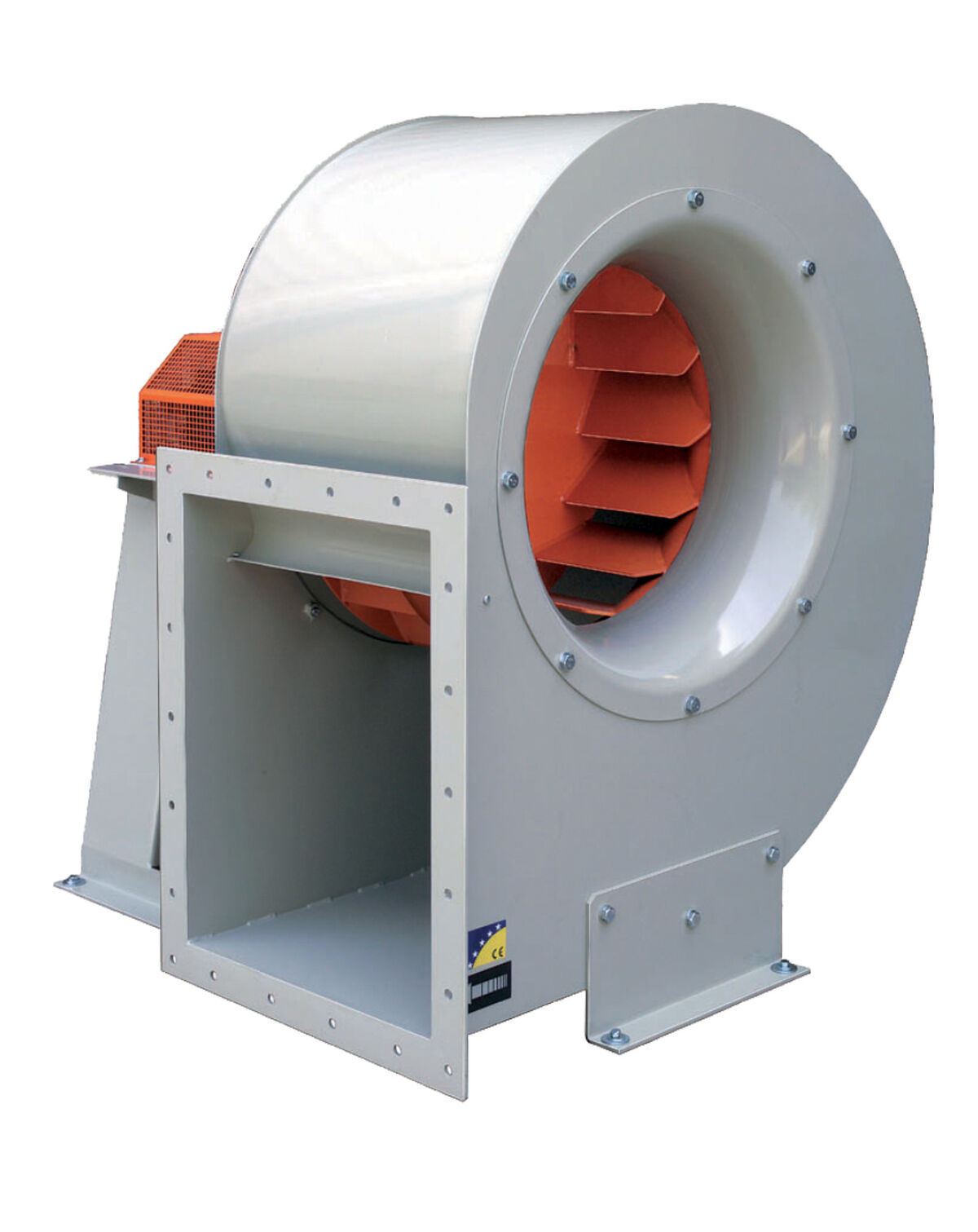

CMR - Centrifugal Fans

Name: Flextraction Ltd
Address: 10 Digby Drive, Leicester Road Industrial Estate, Melton Mowbray, Leicestershire, LE13 0RQ, UK
Telephone: 01664 410 641

Robust centrifugal single-inlet, medium-pressure fans fitted with an impeller with backward facing blades.

Main Features

Steel sheet casing
Backward-curved impeller in extremely robust sheet steel
IE3 efficiency motors for powers equal to or greater than 0.75kW except single-phase. 2-speed and 8-pole.- Class F motors with ball bearings and IP55 protection
Three-phase 230/400V-50Hz (up to 4kW) and 400/690V-50Hz (powers higher than 4kW).- Maximum temperature of air to be carried: -20ºC + 120ºC
Anticorrosive finish of polyester resin polymerised at 190ºC. previously degreased with phosphate-free nanotechnological treatment
Available On Request:
Special windings for different voltages
Fan prepared for air transmission of up to 250ºC
Stainless steel fan
Category 2 ATEX certification (see CMR/ATEX series).

Manufactured to Order

£POA

Excluding delivery cost, optional installation and on-site training.

Manufacturer:	Sodeca

Description & Features
Technical Data

Description & Features

A range of extremely robust, medium pressure, single-inlet, centrifugal fans fitted with a forward curved blade impeller.

Cmr (PDF)

Technical Data

The CMR - Centrifugal Fans may be available in a range of configurations. Should you require a specification other than that shown, then please contact a member of our team on 01664 410 641 to discuss your requirements.

	Speed (r/min)	Power (kW	Max Airflow (m3/h)	Sound Level dB(A)	Approx Weight (Kg)
CMR-622-2T	2710	0.25	1040	74	11.60
CMR-728-2T	2760	0.55	1800	76	17.60
CMR-1135-2T	2885	2.20	7800	83	54.90
CMR-1445-2T	2870	7.50	16500	87	126.00
CMR-1650-4T	1430	1.50	10500	74	114.00
CMR-2380-4T	1465	22.00	48000	83	416.00
