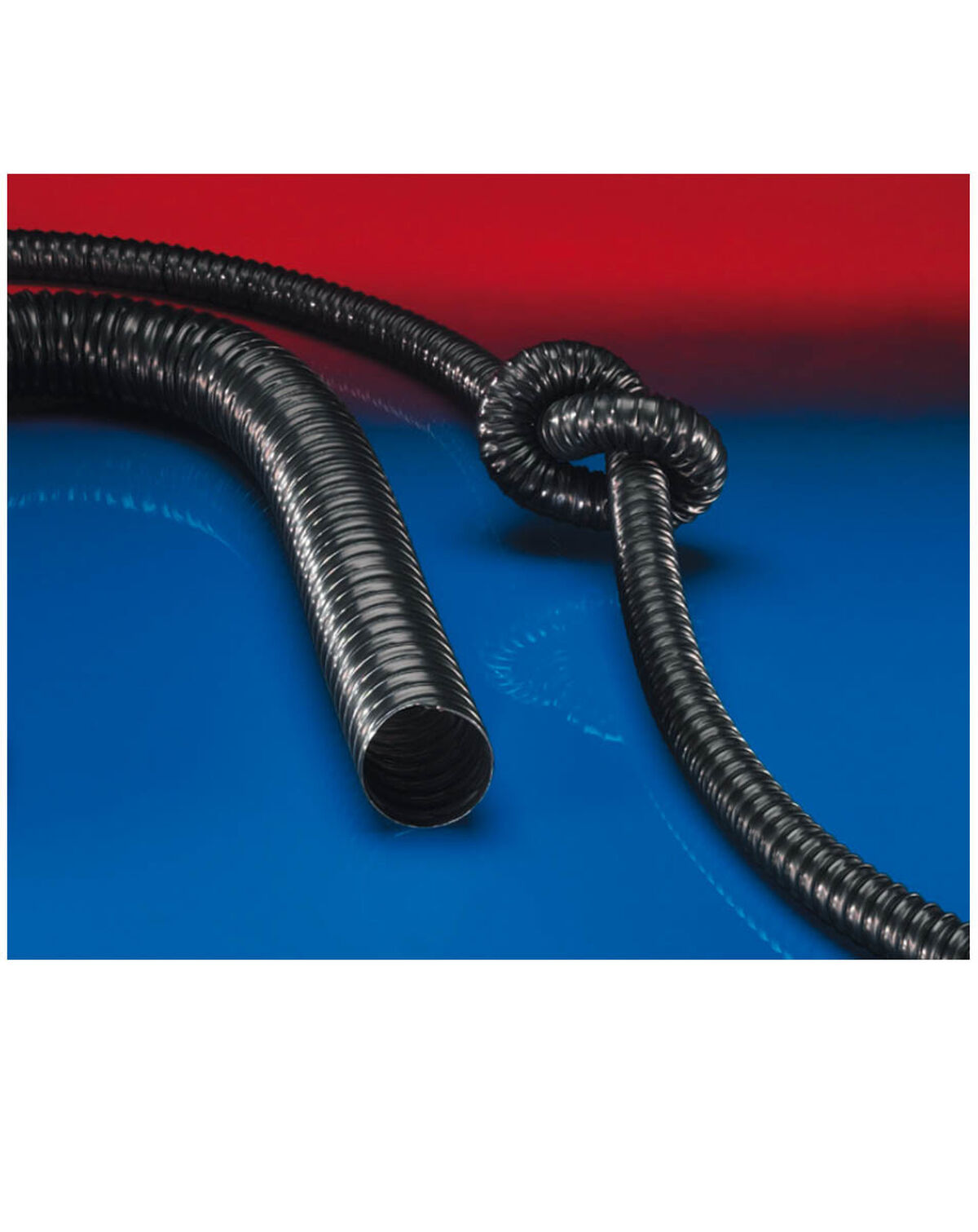

Electrically Conductive Hose - PROTAPE® PE 322 EC

A light weight, electrically conductive polyethylene hose

Main Features
  • light weight
  • highly flexible & compressible
  • good resistant to alkalis, acids & chemicals
  • electrically conductive wall: electrical and surface resistance <10³ Ω
  • conforms to RoHS guideline
Manufactured to Order

£POA

Excluding delivery cost, optional installation and on-site training.

Manufacturer:Norres

Description & Features

Applications

Suitable for:

  • use with extraction arms & extraction units, dedusting & filter systems, oil mist extraction
  • chemical industry vapours, paint steam, spray mist extraction
  • X-ray machine: cable protection conduit (special type on request)
  • heating hose: exterior hose as protection hose

Properties

  • light weight
  • highly flexible & compressible
  • good resistant to alkalis, acids & chemicals
  • electrically conductive wall: electrical and surface resistance <10³ Ω
  • conforms to RoHS guideline
  • in accordance with ATEX 2014/34/EU and German TRGS 727: pneumatic transport of flammable dusts and bulk materials (Zone 20, 21, 22 inside), aspiration of combustible dusts (Zone 22 inside), for conveying for flammable liquids (inside zone 0, 1, 2), for conveying for non-flammable liquids, for use in zone 1 and 2 (gases), for use in zone 0 (gases)

Design / Materials

Patented PROTAPE® tape hose

  • Spring steel wire integrated in wall
  • wall: electrically conductive polyethylene (PE)
  • wall thickness 0,4 mm approx.

Temperature Range

  • -35°C to 80°C

Technical Data

Hose Length (m)5 / 10 / 15m
Hose Diameter (mm)Up to 500mm
