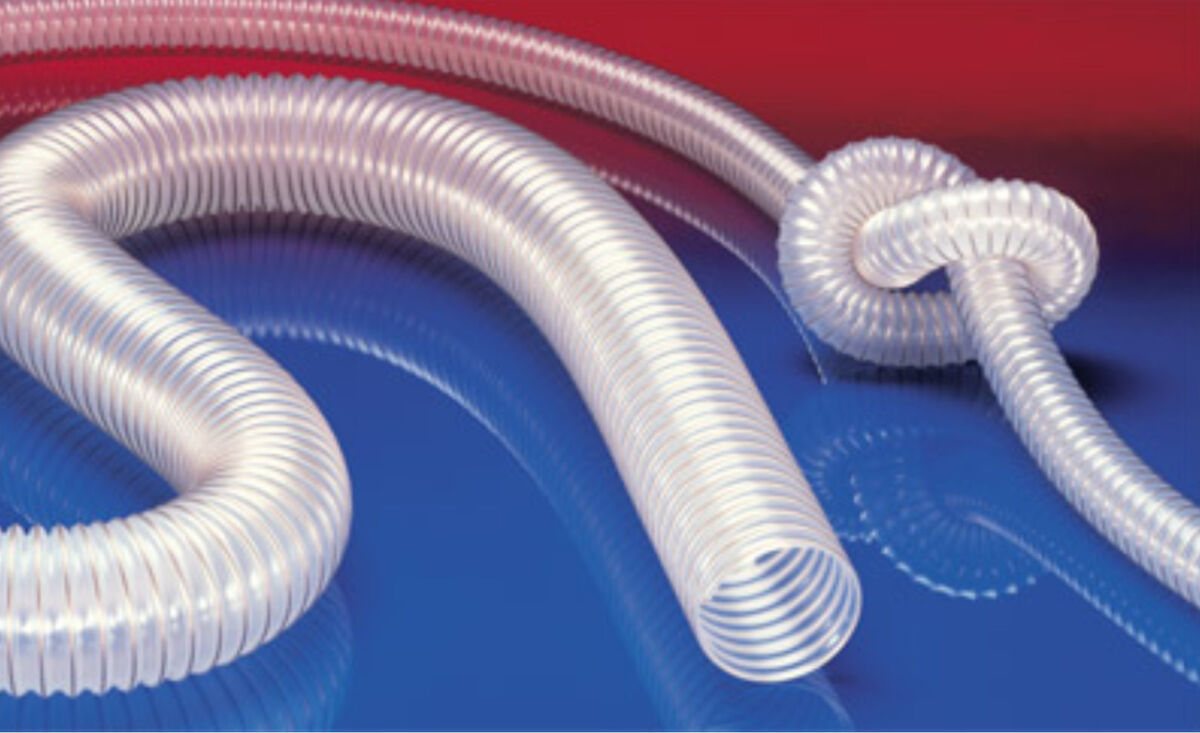

Food Grade Hose- PUR-INOX 330 AS

Anti-static polyurethane hose, super light, microbe resistant & flame retardant

Main Features
  • light weight & reinforced
  • highly flexible - compressible 3:1
  • abrasion, microbe & hydrolysis resistant, with good resistance to oil, gasoline & chemicals
  • very good low temperature flexibility
  • Permanently anti-static wall: electrical & surface resistance <10/9Ω
Manufactured to Order

£POA

Excluding delivery cost, optional installation and on-site training.

Manufacturer:Norres

Description & Features

A light weight, reinforced food grade hose that is suitable for many applications within the food industry.  In addition to the specification below, further diameters and lengths are available on request and it is offered with customer specific branding.

Applications

Suitable for:

  • gasses & abrasive dust, powder & fibres
  • food & pharmaceutical industries
  • conveying of dry foods e.g. rice, cereals, sugar, milk powder, powders, coffee, tea, grain, flour, frozen foods
  • mixer, dryer, packaging machine, bulk bag charging & discharging, mill
  • extraction arms
  • explosion hazard area

Properties

  • in accordance with ATEX 2014/34/EU and German TRGS 727: aspiration of combustible dust (zone 22 inside), for conveying of non-flammable liquids, for use in zone 1 and 2 (gases)
  • manufacturing process acc. GMP EC 2023/2006
  • Conforms to RoHS guidelines

Design / Materials

Patented PROTAPE®

  • Spring steel wire integrated in wall, spiral: stainless steel wire (INOX)
  • wall: permanently anti-static premium ester polyurethane (Pre-PUR®)
  • wall thickness 0.6mm approx

Temperature Range

  • -40°C to 90°C
  • Short time to 125°C

Technical Data

Hose Length (m)5 / 10 / 15m
Hose Diameter (mm)Up to 500mm
