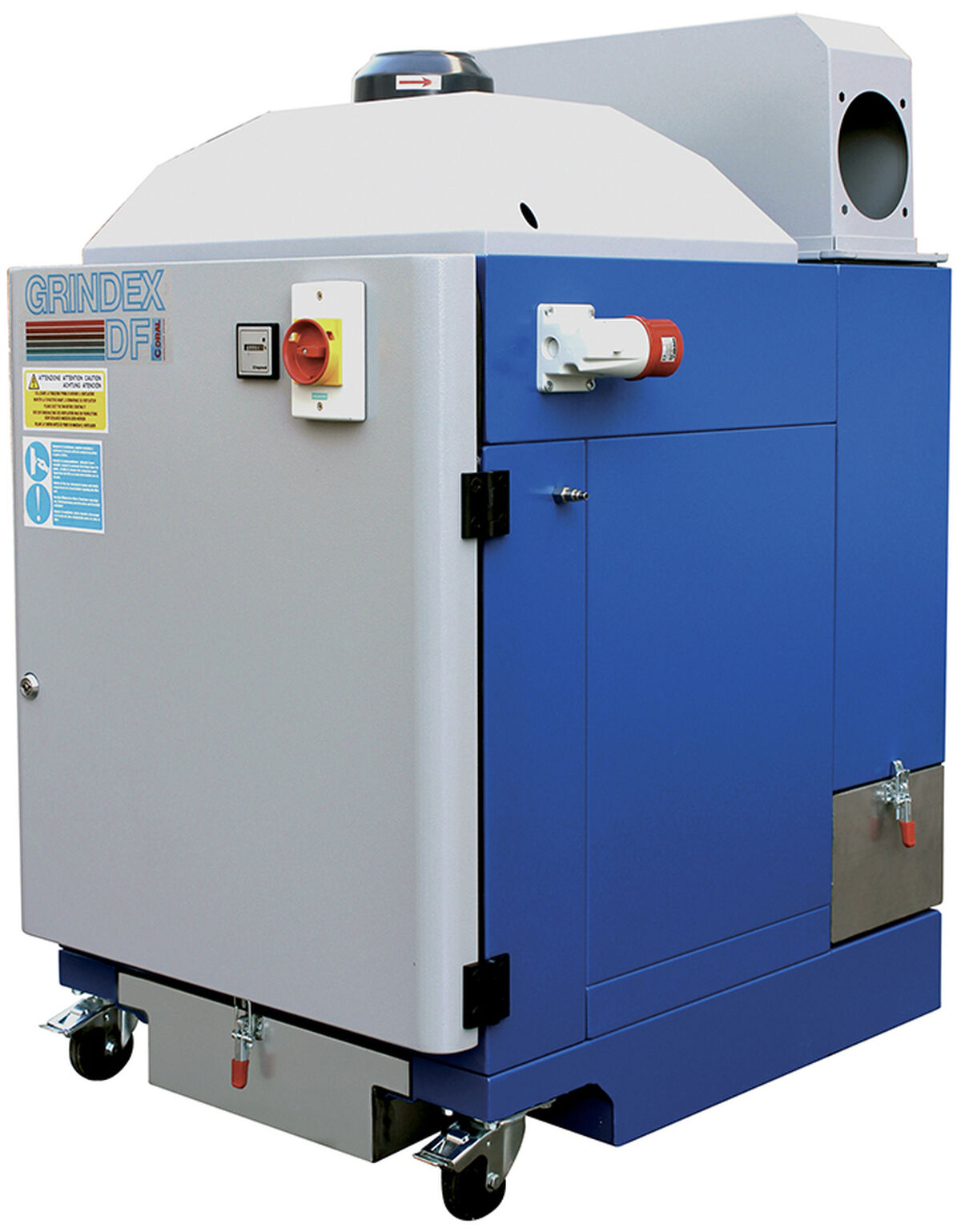

Grindex DF

Mobile Grinding Filtration Unit

The Grindex DF is specifically designed for the dry extraction of grinding dust particles.

A preliminary water sparks trap eliminates the possibility of transporting hot particles that could damage the filters or cause a fire hazard.

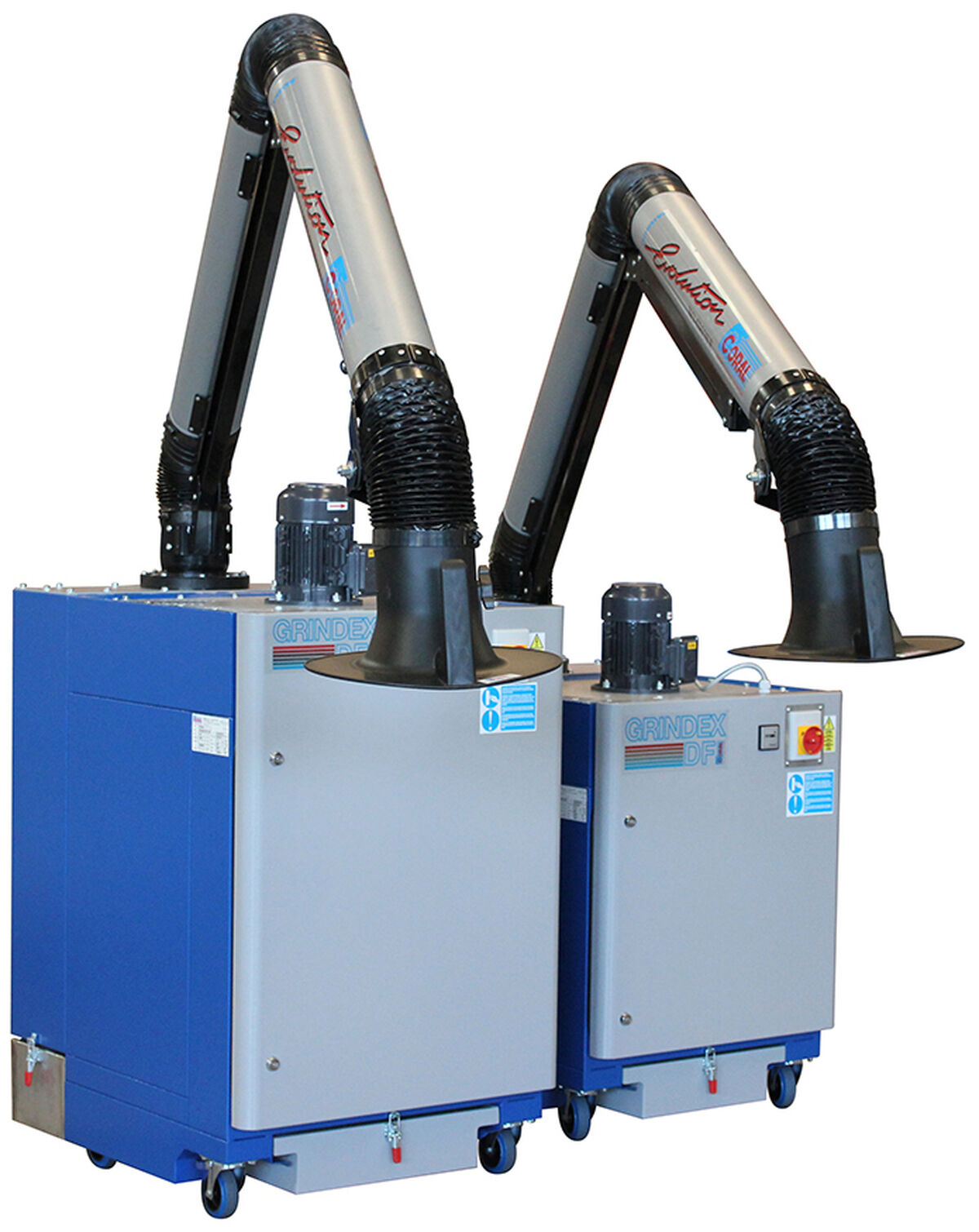

The Grindex DF has an integrated compressed air self-cleaning system, and an inlet connection for an extraction arm designed to rotate 360 degrees.

Manufactured to Order

£POA

Excluding delivery cost, optional installation and on-site training.

Manufacturer:Coral Antipollution Systems

Description & Features

  • An optional extra stage of filtration available, including a carbon filter for safe removal of gases and VOCs
  • Triplex inlet allows direct connection to ductwork
  • Low noise and space saving

Applications

  • Grinding
  • Welding
  • Fabrication
  • Metalworking

Properties

  • 1 or 2 cartridges
  • Optional HEPA filter

Design / Materials

  • M Class High Efficiency Filters
  • Cellulose or Polyester Filters

Technical Data

Maximum Air Flow (m3/h)1450 - 2280
Noise Level (Db)65 - 74.5
Filter Surface Area (m3)8 - 24
Motor Size (kW)0.75-2.2
