HCH-ATEX - Axial Fans

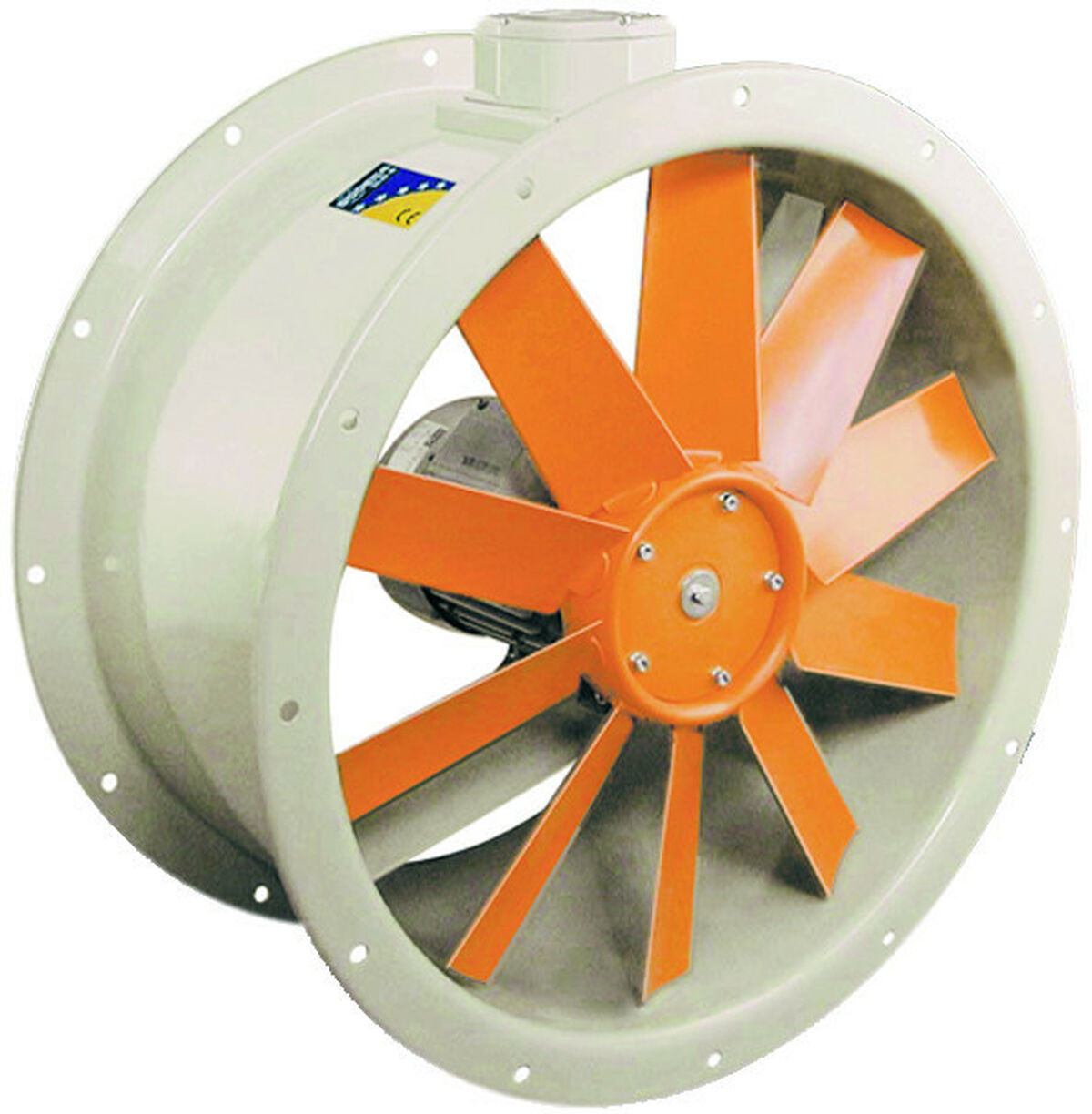

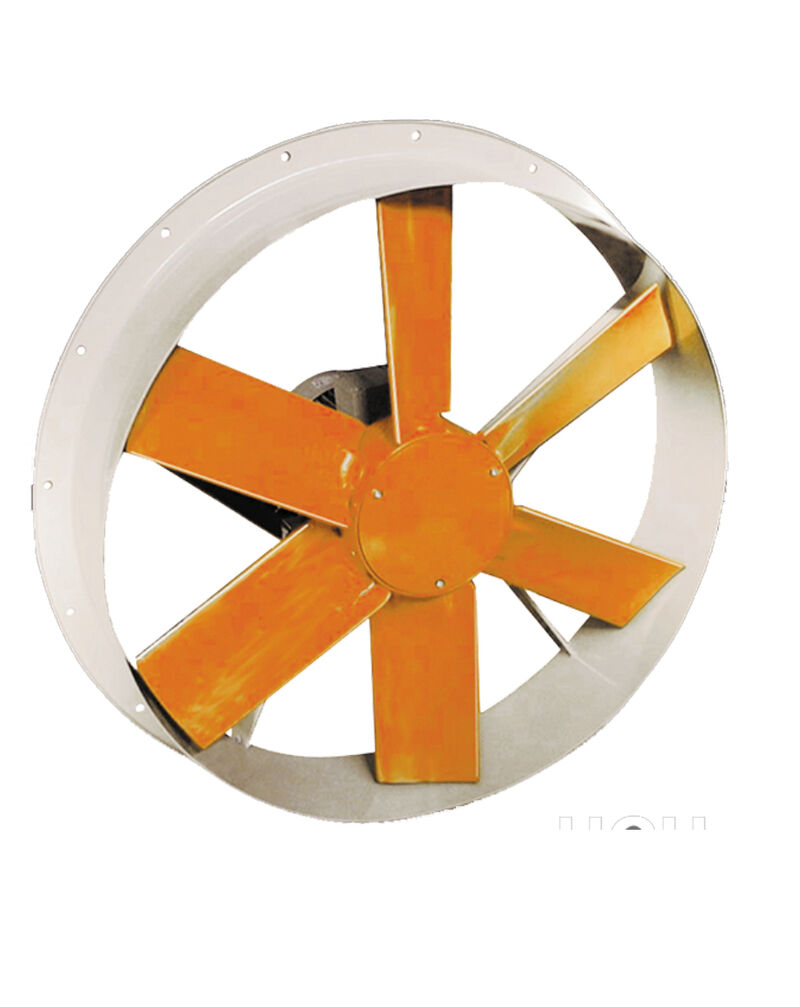

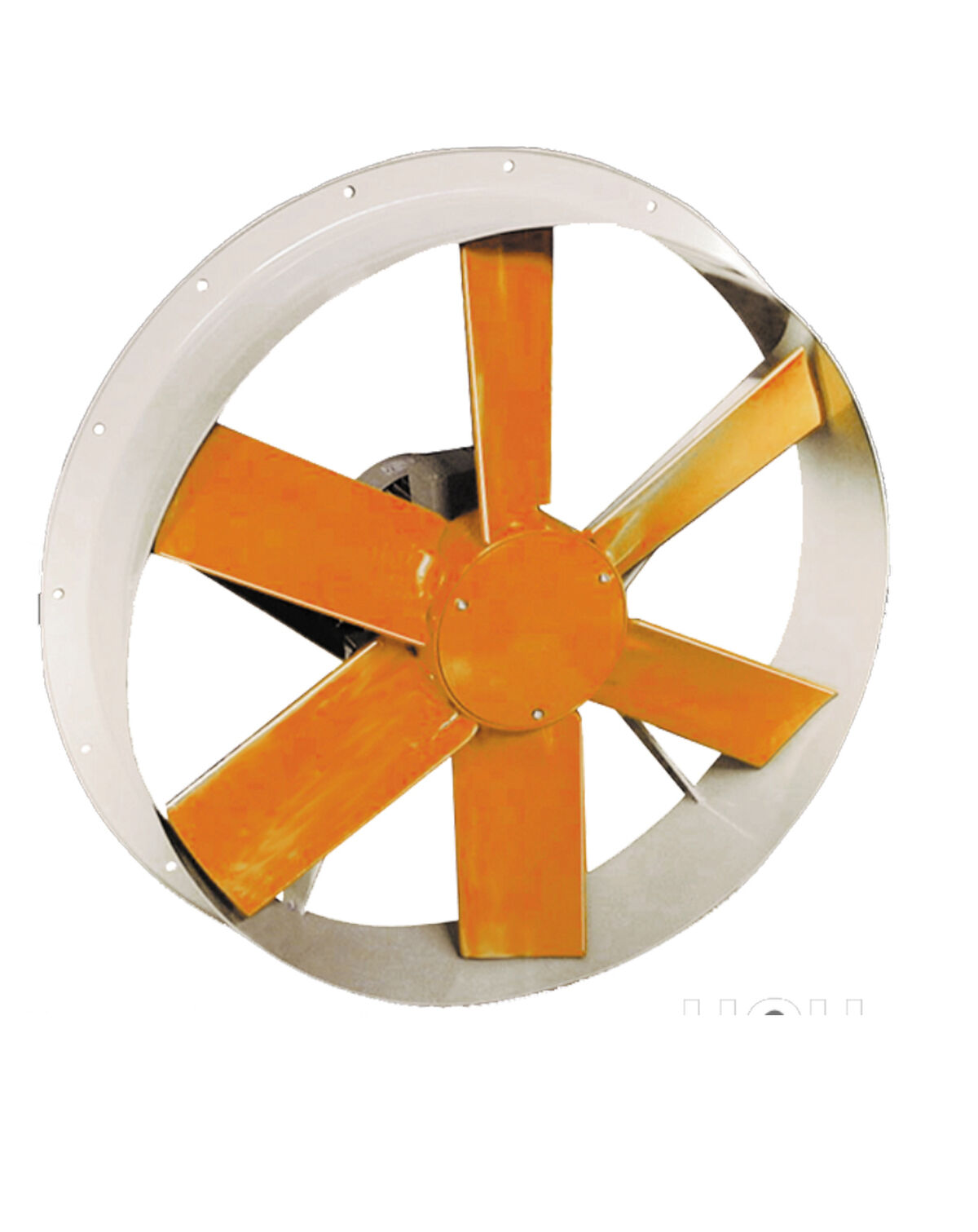

Circular axial fans (HCH) or Long-cased fans (HCT) with ATEX certification.

Main Features
  • Circular axial fans (HCH) or Long-cased fans (HCT) with ATEX certification, CEE ExII2G Ex e, explosion-proof and CEE ExII2G Ex d , Ex tc, or Ex tb flame-resistant motor to work in explosive atmospheres
  • HCH/ATEX: Support ring in sheet steel with aluminium strip in the impeller area in accordance with Standard EN-14986:2007
  • HCT/ATEX: Sheet steel long casing with aluminium strip in the impeller area in accordance with Standard EN-14986:2007
  • Impeller made from cast aluminium
  • Incorporates with inspection hatch (HCT)
  • Airflow direction from motor to impeller
  • Class F motors with ball bearings and ATEX certification, Ex e explosion-proof and Ex d, Ex tc, or Ex tb flame-resistant
  • Three phase, 50Hz, 230/400V motors up to and including 4kW. 400/690V over 4kW
  • Fan working temperature: -20ºC + 40ºC
  • Rust retardant finish with ATEX paint, containing no ferrous components, in polyester resin polymerised at 190ºC, after phosphate free pre-treatment
  • Available On request:
  • Built-in motors with PTC
  • Special windings for different electrical supplies and frequencies
  • ATEX construction for different categories
  • Fans with two-speed motor
  • Ex d flame-resistant single-phase motors
Manufactured to Order

£POA

Excluding delivery cost, optional installation and on-site training.

Manufacturer:Sodeca

Description & Features

  • HCH/ATEX: Robust wall-mounted axial fans with ATEX certification
  • HCT/ATEX: Robust long-cased axial fans with ATEX certification

Technical Data
