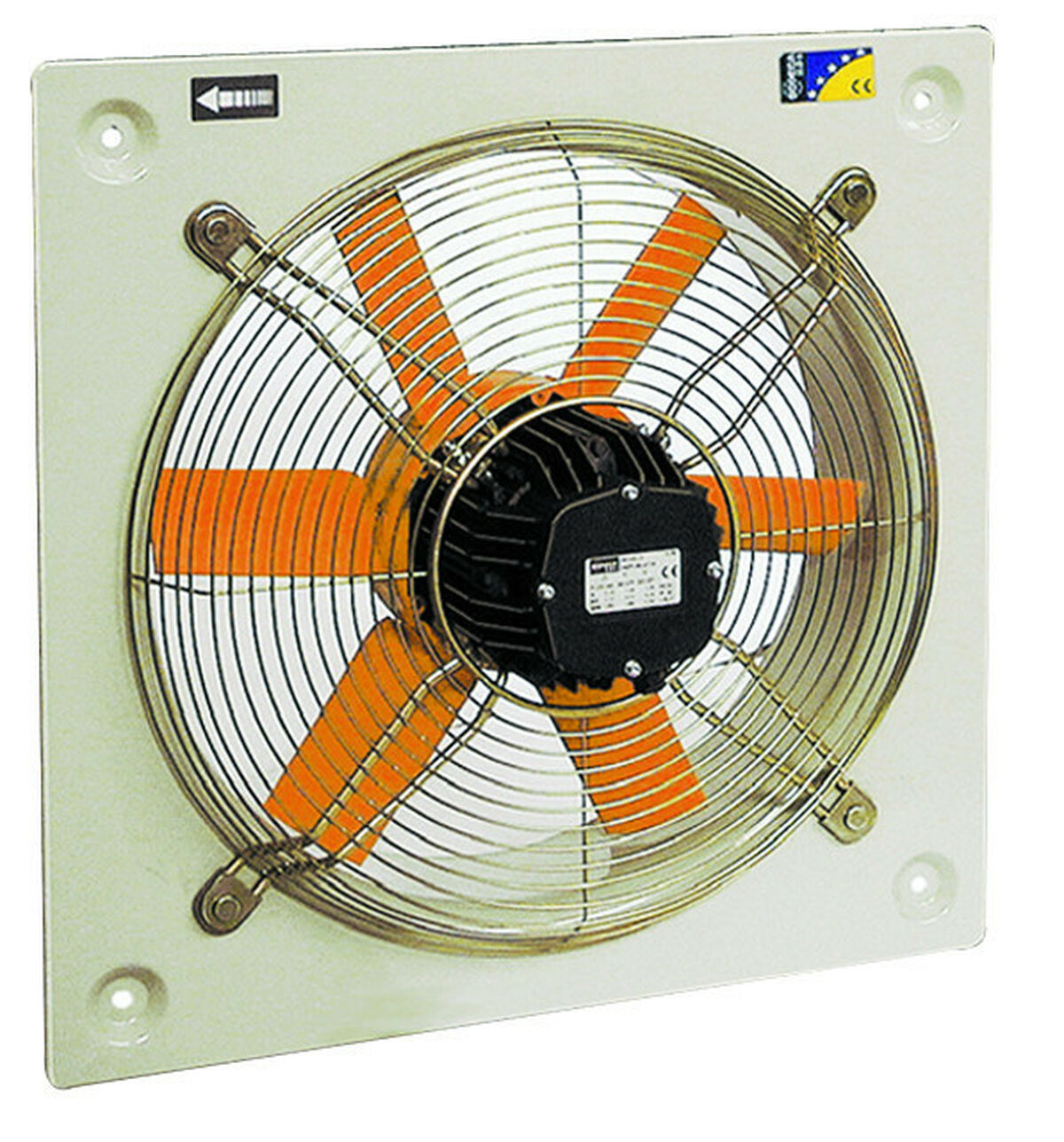

HEP - Axial Fans
Wall-mounted axial fans with IP65 motors
Main Features
- Airflow direction from motor to impeller
- Fibreglass reinforced polyamide-6 rotors
- Sheet metal support base
- Anti-contact protective grille pursuant to standard UNE‐EN ISO 12499.
- Class F motors with ball bearings and IP65 protection
- Single-phase 220/240V-50Hz. and three-phase 240V/380-415V-50Hz
- Operating temperature: -25ºC +60ºC. 4-6-8-pole motors and -25ºC +45ºC. 2-pole motors
- Anticorrosive finish of polyester resin polymerised at 190ºC. previously degreased with phosphate-free nanotechnological treatment
- On request:
- Motor, rotor and grille unit (version F)
- Rotor motor unit (version G)
- Airflow direction from impeller to motor
- Special windings for different voltages.
Manufactured to Order
£POA
Excluding delivery cost, optional installation and on-site training.
| Manufacturer: | Sodeca |
|---|
Description & Features
Wall-mounted axial fans with reinforced plastic rotor made of fibreglass.
Available as either:
HEP: Wall-mounted axial fans, with IP65 motor
HEPT: Long-cased axial fans, with IP65 motor
Technical Data
The HEP - Axial Fans may be available in a range of configurations. Should you require a specification other than that shown, then please contact a member of our team on 01664 410 641 to discuss your requirements.
| Model | Speed (r/min) | Power (kW) | Max Airflow (m3/h) | Sound Level dB(A) | Approx Weight (Kg) |
|---|---|---|---|---|---|
| HEP-25-2T | 2780 | 265 | 2300 | 64 | 5.30 |
| HEP-45-6T/H | 955 | 215 | 4900 | 56 | 11.40 |
| HEP-56-4T/L | 1400 | 710 | 10900 | 70 | 19.00 |
| HEP-63-4T/L | 1375 | 1275 | 16500 | 75 | 23.00 |
| HEP-63-6M/L | 945 | 330 | 9450 | 63 | 19.40 |
