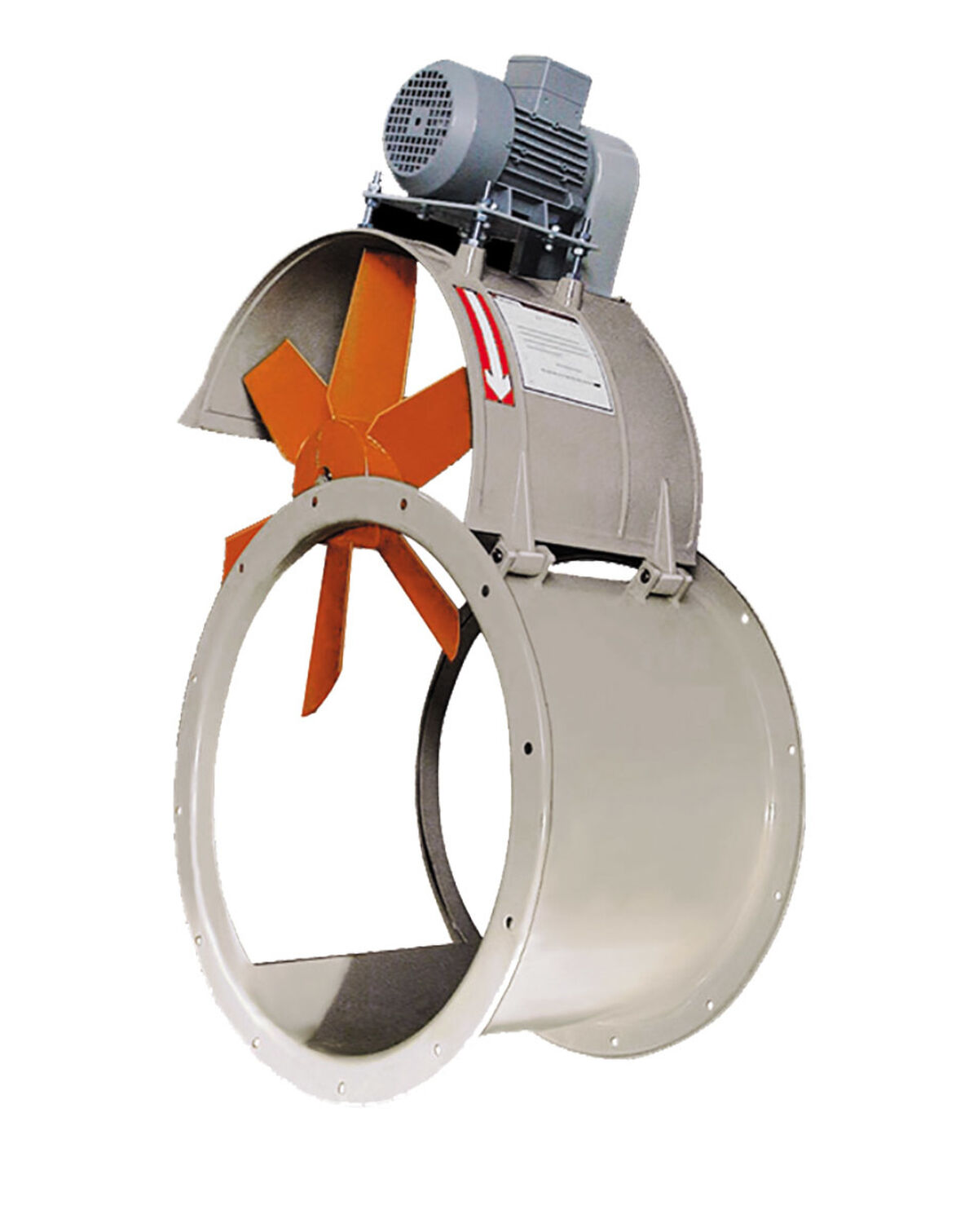

HPX - Axial Fans
A range of Tubular axial fans with external motors
Main Features
- Tubular sheet steel casing with rotating cover
- Cast aluminium rotors
- Sealed transmission unit (IP66) with double retention system
- Airflow direction from motor to impeller
- Operating temperature: -25ºC +120ºC
- IE3 efficiency motors for powers equal to or greater than 0.75kW except single-phase. 2-speed and 8-pole.- Class F motors with ball bearings and IP55 protection
- Single-phase 230V-50Hz and three-phase 230/400V-50Hz (up to 4kW) and 400/690V-50Hz (powers greater than 4kW)
- Anticorrosive finish of polyester resin polymerised at 190ºC. previously degreased with phosphate-free nanotechnological treatment
- Available On request:
- Airflow direction from impeller to motor
- Rotors 100% reversible
- Special windings for different voltages
- Category 2 ATEX certification (see HPX/ATEX series).
Manufactured to Order
£POA
Excluding delivery cost, optional installation and on-site training.
| Manufacturer: | Sodeca |
|---|
Description & Features
Long cased, tubular, belt driven axial fans that are activated by transmission, with a casing aperture up to 180º and motors that are mounted external of the airflow.
Technical Data
The HPX - Axial Fans may be available in a range of configurations. Should you require a specification other than that shown, then please contact a member of our team on 01664 410 641 to discuss your requirements.
| Model | Speed (r/min) | Power (kW) | Max Airflow (m3/h) | Sound Level dB(A) | Approx Weight (Kg) |
|---|---|---|---|---|---|
| HPX-35-2T-0.75 | 2720 | 0.55 | 4750 | 77 | 22.00 |
| HPX-56-4T-1.5 | 1420 | 1.10 | 14500 | 75 | 39.00 |
| HPX-80-4T-3 | 1200 | 2.20 | 29000 | 83 | 95.00 |
| HPX-100-4T-15 IE3 | 1450 | 11.00 | 68000 | 94 | 206.00 |
