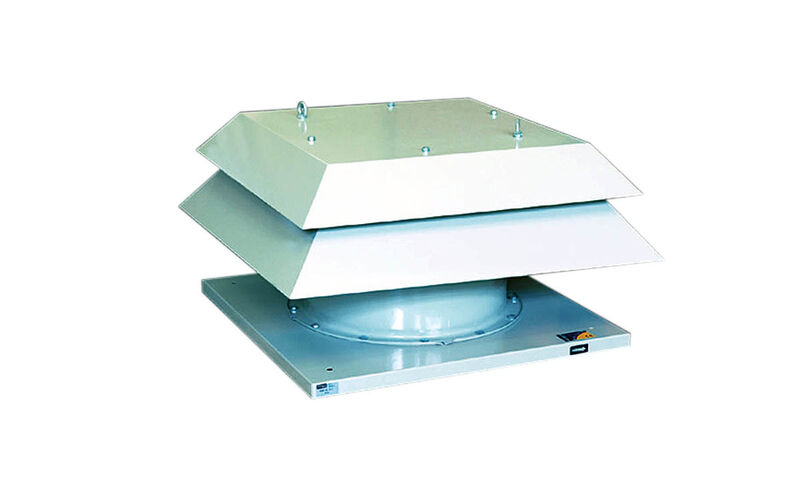

HTMF - Roof Fans
Multifunctional 400ºC/2h and 300ºC/2h roof fans
Main Features
Multi-functional 400ºC/2h ceiling fans to work inside fire danger zones, designed for smoke extraction in industrial or similar buildings.
Manufactured to Order
£POA
Excluding delivery cost, optional installation and on-site training.
| Manufacturer: | Sodeca |
|---|
Description & Features
- Sheet steel base plateTurnable impellers cast aluminium.
- Protection guard to prevent contacts according to standard UNE-EN ISO 12499:2010
- Sheet steel hood with natural air outlet. Approval according to Standard EN 12101-3:2002/AC:2006, with certification No 0370-CPR-0544
- Class H motors, ongoing use S1 and emergency use S2, with ball bearings, IP55 protection, and one- or two- speed depending on the model.
- Three-phase 230/400V -50Hz. (up to 4HP) and 400/690V.-50Hz. (power over 4HP.)
- Max. air temperature to transport: S1 Service -20ºC + 40ºC for ongoing use, S2 Service 300ºC/2h, 400ºC/2h
- Anti-corrosive finish in polyester resin, polymerised at 190°C after phosphate free pre-treatment
Available On request:
• Fans with 200ºC/2h one- or two-speed motor
Technical Data
The HTMF - Roof Fans may be available in a range of configurations. Should you require a specification other than that shown, then please contact a member of our team on 01664 410 641 to discuss your requirements.
| Model | Speed (r/min) | Power (kW) | Max Airflow (m3/h) | Sound Level dB(A) | Approx Weight (Kg) |
|---|---|---|---|---|---|
| HTMF-56-4T-1 | 1430 | 0.75 | 10545 | 62 Inlet - 59 Outlet | 79 |
| HTMF-63-4T-3 | 1435 | 2.20 | 17955 | 67 Inlet - 64 Outlet | 108 |
| HTMF-71-6T-1 | 940 | 0.75 | 13205 | 58 Inlet - 56 Outlet | 109 |
| HTMF-90-4T-5,5 | 1440 | 4.00 | 35052 | 79 Inlet - 76 Outlet | 208 |
