MICROIL

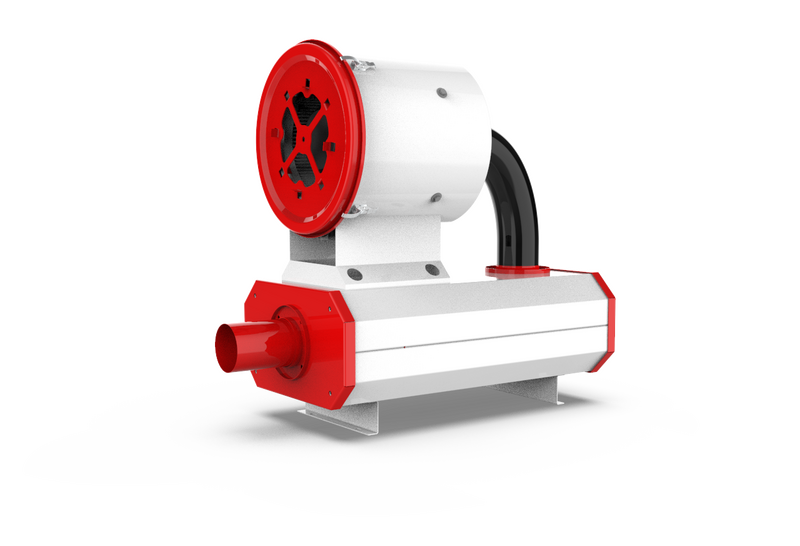

Turbine Style Mist Collector

MICROIL's flexible design, combined with pre and after filter elements, allows for use on all machine tools using water based or whole oil based coolants.

The range consists of two models fitted with different turbine blades and motors.

The specially designed turbine impeller has been dynamically balanced so that no vibration will be created or passed down to the machine tool.

Manufactured to Order

£POA

Excluding delivery cost, optional installation and on-site training.

Manufacturer:Micronfilter

Description & Features

  • Up to 7 different combinations to suit the size of the machine tools involved
  • Can be supplied with complete installation kits on request
  • High performance equal to 98% removal
  • Optional post filter can increase performance to 99.98% efficiency

Applications

  • Water based / Whole oil based coolants

Properties

  • Modifications with pre and post filters at any time to suit

Design / Materials

  • Large pleated cellulose filter cartridge
  • Optional additional post filter

Technical Data

Maximum Air Flow (m3/h)600-3000
Noise Level (Db)64-76
Filter Surface Area (m3)5.7-14.7
Motor Size (kW)0.25-1.5
Air Volume (m3/h)600-3000
