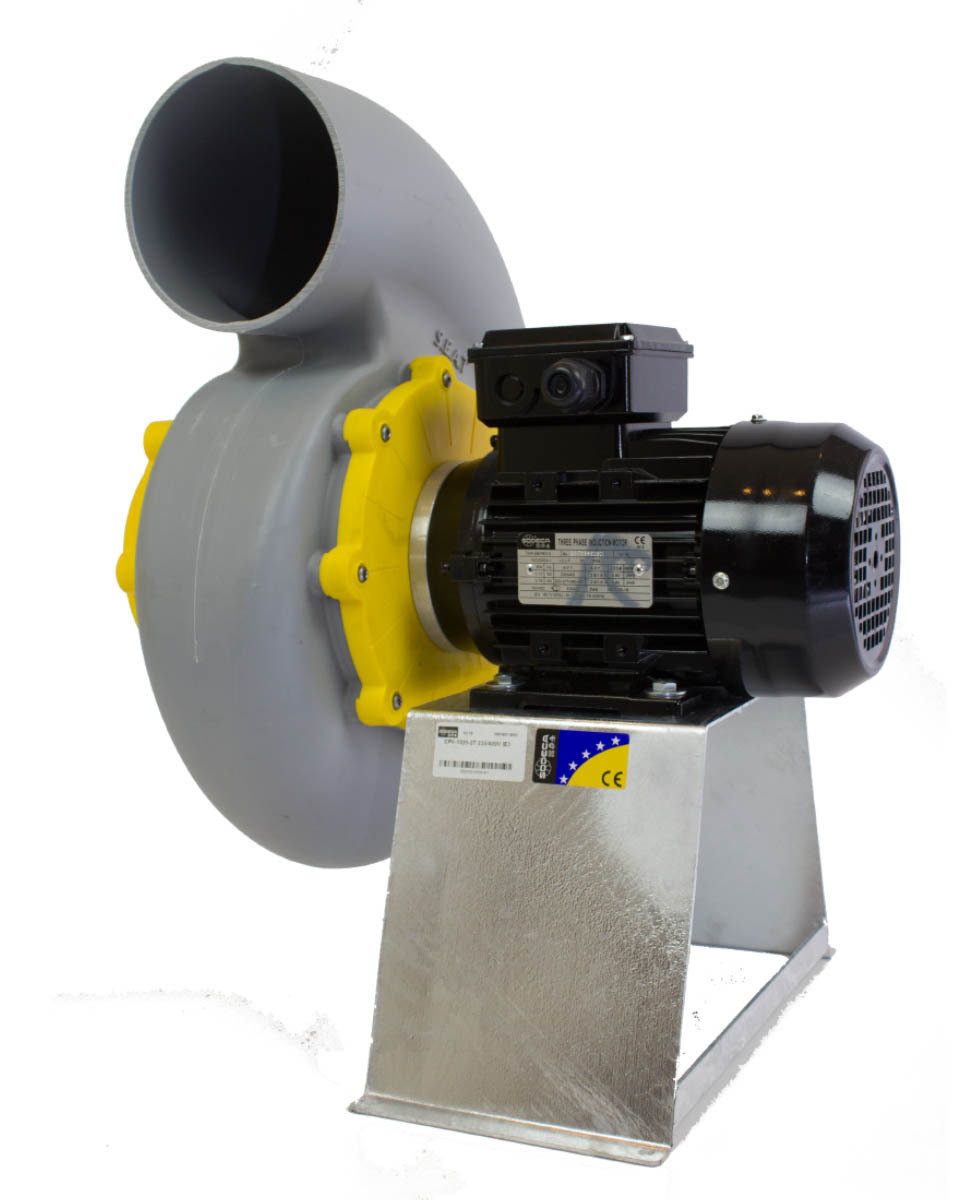

Polypropylene Centrifugal fans

Corrosion-proof, single-inlet centrifugal fans made of polypropylene

Main Features
  • Polypropylene casing
  • Impeller with forward-curved blades made of polypropylene.
Manufactured to Order


Excluding delivery cost, optional installation and on-site training.


Description & Features

An aesthetic and modern designed, single inlet, centrifugal fan that is anti corrosive and manufactured from polypropylene.


  • IE3 efficiency motors for powers equal to or greater than 0.75kW except single-phase
  • 2-speed and 8-pole Class F motors with ball bearings and IP55 protection
  • Three-phase 230/400V-50Hz (up to 4kW) and 400/690V-50Hz (powers higher than 4kW)
  • Maximum temperature of air to be carried: -20ºC + 70ºC. Corrosive-proof in plastic material.
  • Special windings for different electrical supplies
  • ATEX certification, Category 3
  • IE2 and IE3 efficiency motors assembled on any unit

Technical Data

The Polypropylene Centrifugal fans may be available in a range of configurations. Should you require a specification other than that shown, then please contact a member of our team on 01664 410 641 to discuss your requirements.

Speed (r/min)Power (kW)Max Airflow (m3/h)Sound Level dB(A)Approx Weight (Kg)
CPV-2060-4T IE3147011.01200081270.0
CPV-2160-4T IE3146515.01550077299.0
CPV-2045-4T IE314657.51040078118.0
