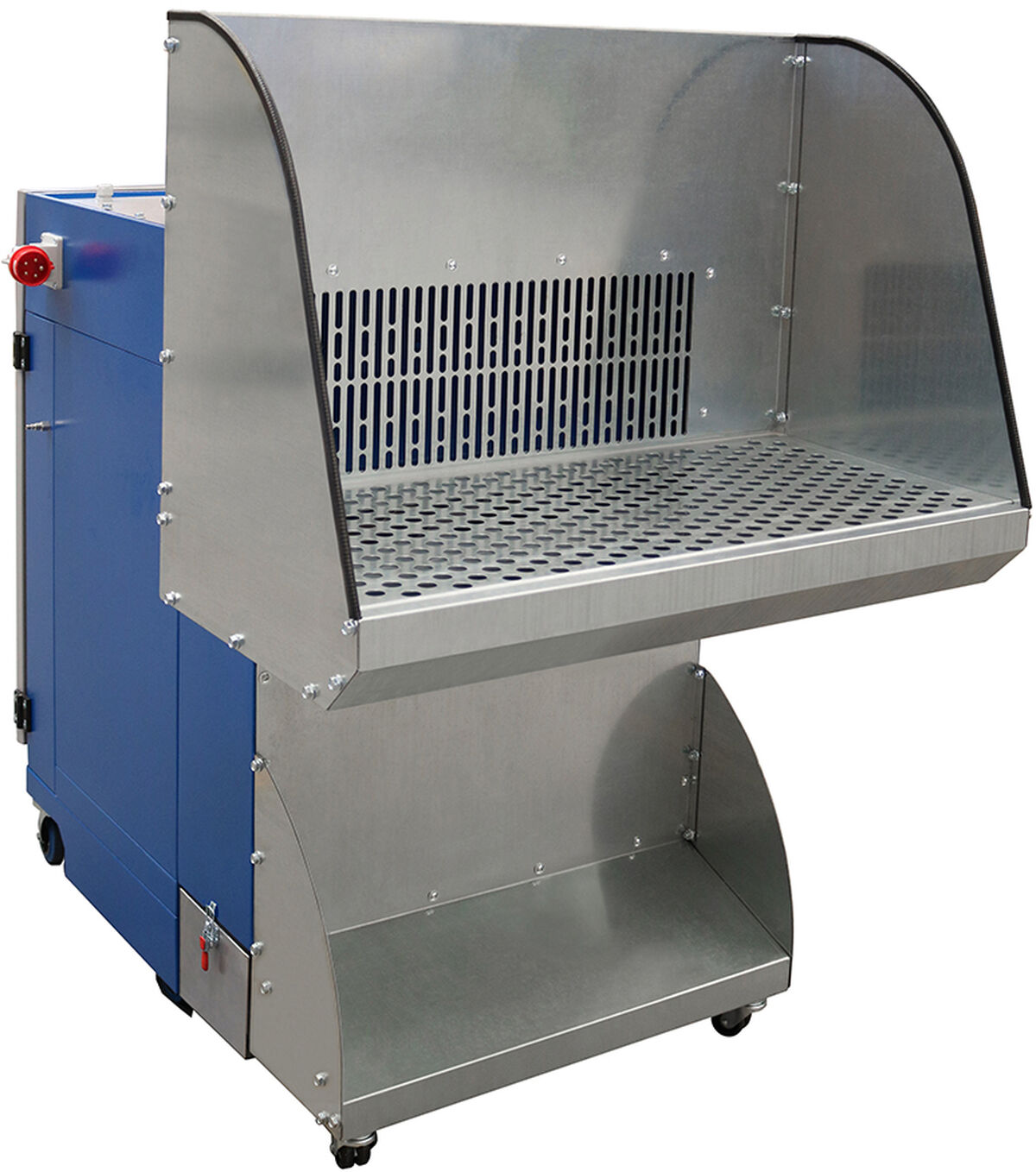

Smokart DF

Mobile Welding Downdraft Bench

The Smokart is a compact mobile extraction bench suited for a variety of welding and grinding processes.

The mobility of the unit allows for extraction at source and positioning in the specific work area.

Fume and dust produced during the application process is extracted through the suction top to an internal filtration system, where a combination of cartridge filtration and an integrated compressed air cleaning system ensures air returned to the surrounding workplace is pollutant free.

Manufactured to Order

£POA

Excluding delivery cost, optional installation and on-site training.

Manufacturer:Coral Antipollution Systems

Description & Features

  • Two variations available for welding and/or grinding
  • Grinding bench complete with spark trap and water pre-filtration system with level control
  • Optional activated carbon filter and/or absolute filter H13
  • Optional soundproofing plenum

Applications

  • Automotive Industry
  • Industrial Automation
  • Metalworking
  • Welding Grinding Metal Sheet Processing

Properties

  • Dust bin holding for welding/light grinding capacity 12-28lt
  • Water stainless steel tank for grinding capacity 20-28lt

Design / Materials

  • M Class Filters
  • Centrifugal Fan

Technical Data

Maximum Air Flow (m3/h)1880-2280
Filter Surface Area (m3)16
Motor Size (kW)1.1 - 2.2
Air Volume (m3/h)1880-2280
