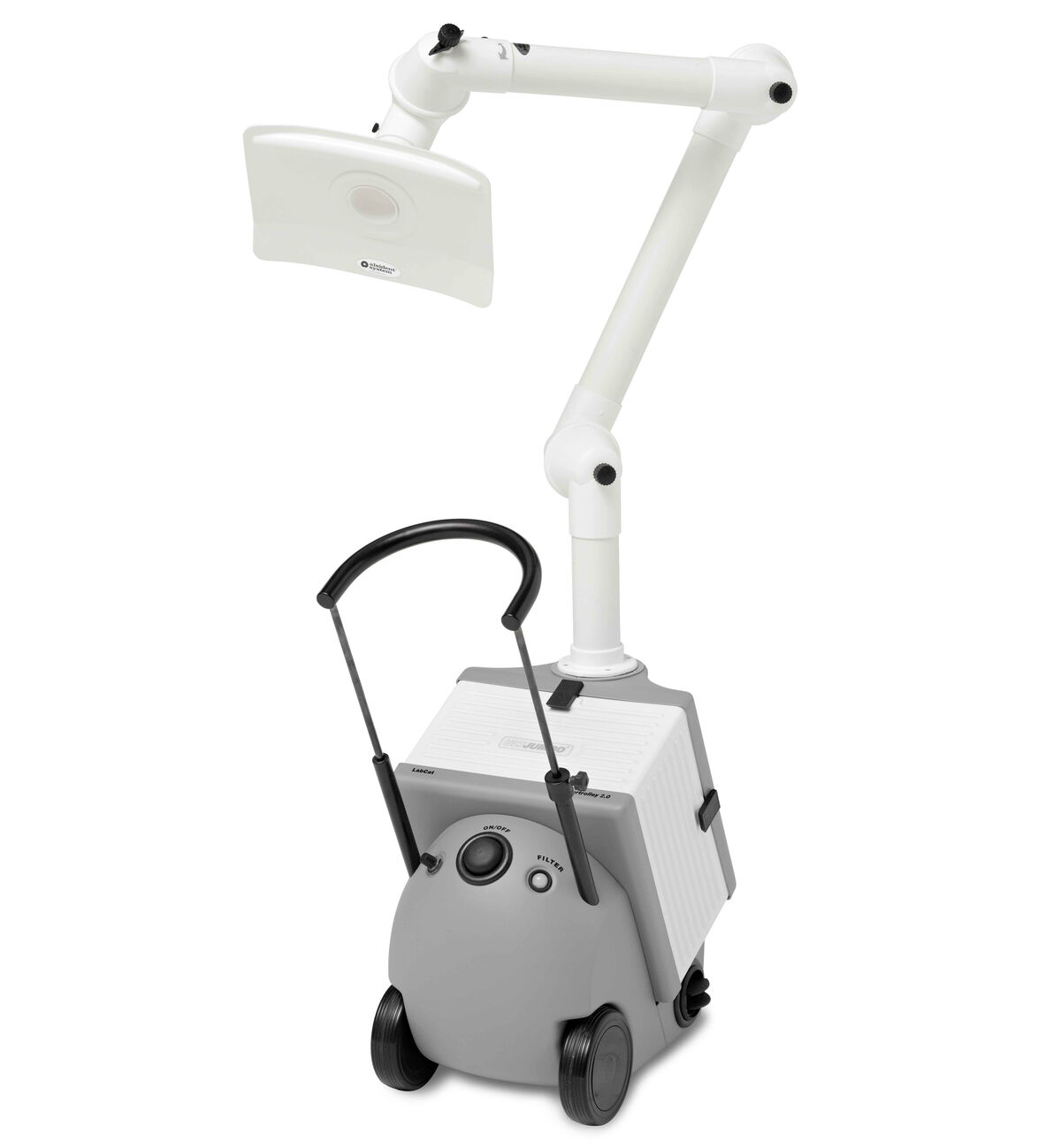

ULT JUMBO Filtertrolley 2.0 LabCat KC

A mobile extraction and filtration unit for Dust, Gas and Vapours in Laboratory Environments

Main Features
  • Small, light and extremely quiet
  • Usable in any position, variable suction plate, excellent ergonomics and handling
  • Loaded particle filter indicator and economical through long filter life
  • Contamination free filter changing
  • Application specific capturing elements and self supporting extraction arm
  • Optional digital control with remote control and alternative suction accessories
Manufactured to Order

£POA

Excluding delivery cost, optional installation and on-site training.

Manufacturer:ULT AG

Description & Features

Hazardous airborne contaminants are often caused during analysis and synthesis processes in laboratories. Usually they occur in small quantities, but particularly in chemical, pharmaceutical or medical fields they may become highly dangerous for human health.

The ULT JUMBO Filtertrolley 2.0 LabCat is a specially designed extraction and filtration unit for changing work sites and applications where there is a lack of space. Its compact dimensions and ergonomics allow quick location changes and precise capturing of hazardous substances directly at their point of origin. The unit’s filtration system guarantees air purification from coarse and finest dusts, odours and hazardous gases.

Properties

Design / Materials

  • Impact Resistant ABS
  • Chemical Resistant
  • Corrosion Resistant

Technical Data

Maximum Air Flow (m3/h)170.00
Maximum Vacuum (Pa)2800.00
Nominal Capacity (m3/hr/Pa)80 @ 1400 Pa
Noise Level (Db)45 @ 50% - 49 @ 100%
Filter Surface Area (m3)0.00
Motor Size (kW)0.15
Electrical Connection230v/50Hz
Filter Type 1 Z Line Filter Cassette G4
Filter Type 2 Filter Mat M5
Filter Type 3.1 Particle Filter H13
Filter Type 3.2 Chemisorption Filter
