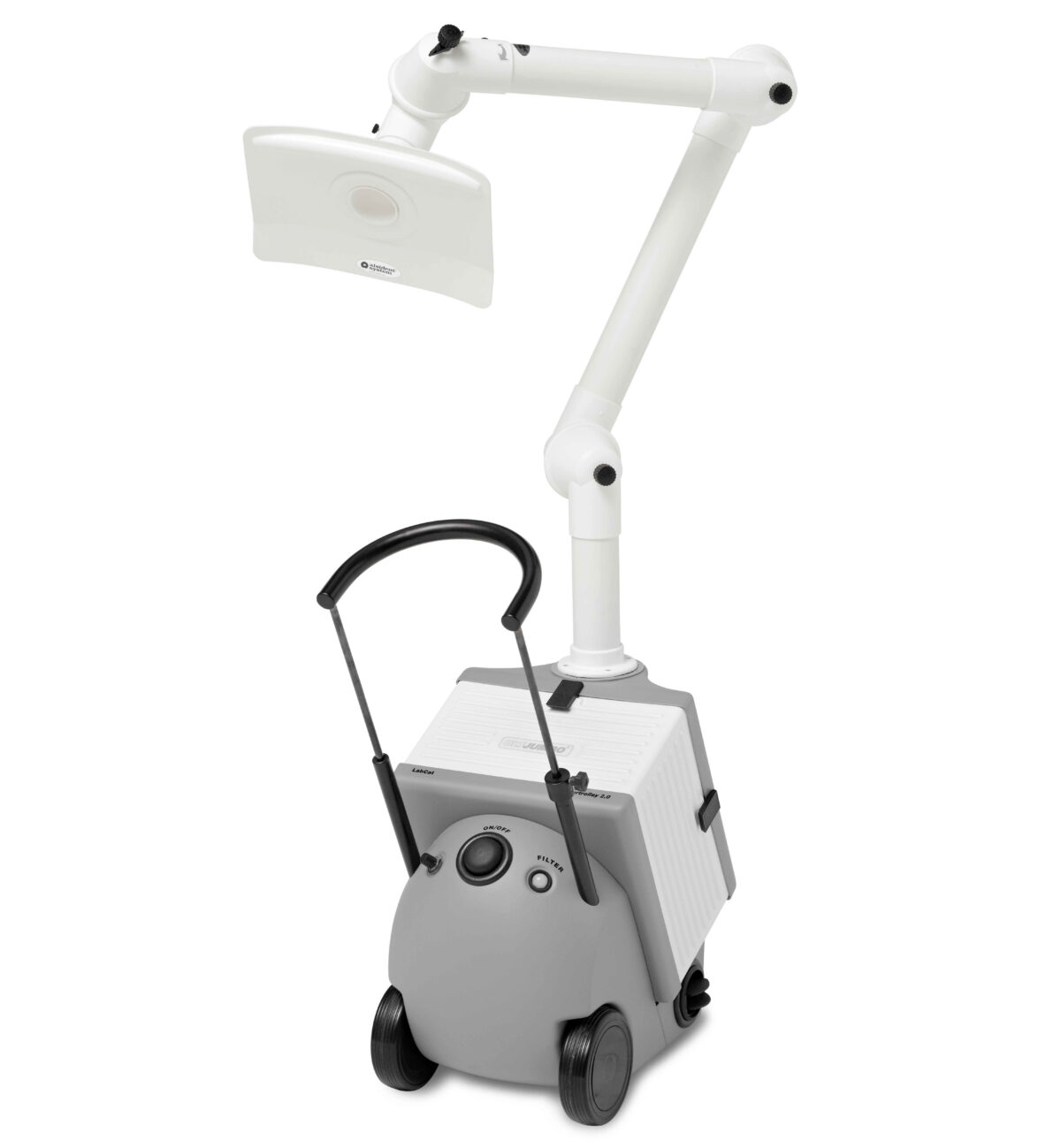

ULT JUMBO Filtertrolley MED

Research studies clearly show that laser smoke, caused by medical laser applications and electrosurgery, contains hazardous biological and chemical substances. They include respirable, biogenic particles, which represent a high risk of infection to the doctor, personnel and patients. In order to minimize both the risk of infection and offensive odours, and to comply with the legal regulations concerning air purification in the workplace, the use of a reliable extraction and filter unit is necessary.

  • compact and mobile smoke evacuators
  • very good ergonomics and handling
  • high, adjustable extraction performance with a low noise level
  • is activated by foot control
  • high degree of cost effectiveness as a result of long filter operating time
  • digital control with optional remote control possible
  • optional alternative extraction accessories
Manufactured to Order


Excluding delivery cost, optional installation and on-site training.

Manufacturer:ULT AG

Description & Features

A compact, mobile and versatile unit that offers clean air and high performance.

Smoke extraction for laser plume produced during

  • medical laser
  • appli cations for
  • aesthetics, laser
  • surgery, ophthalmology,
  • dental and
  • HF-surgery


• Medical laser applications
• Electrosurgery
• Ophtalmology
• Dermatology
• Dentist’s surgery Laboratories
• Anaesthesia workplaces
• Animal clinics etc.


Extraction arm length - 965 mm

Arm diameter - 50 mm

Technical Data

Maximum Air Flow (m3/h)170.00
Maximum Vacuum (Pa)2800.00
Nominal Capacity (m3/hr/Pa)80 @ 1400 Pa
Noise Level (Db)45 - 49 @ 100%
Filter Surface Area (m3)0.00
Motor Size (kW)0.15
Electrical Connection230v/50Hz
Air Volume (m3/h)0.00
Filter Type 1 Z Line Filter Cassette G4
Filter Type 2 Filter Mat M5
Filter Type 3.1 Particle Filter U15
Filter Type 3.2 Adsorption Filter Cassette
