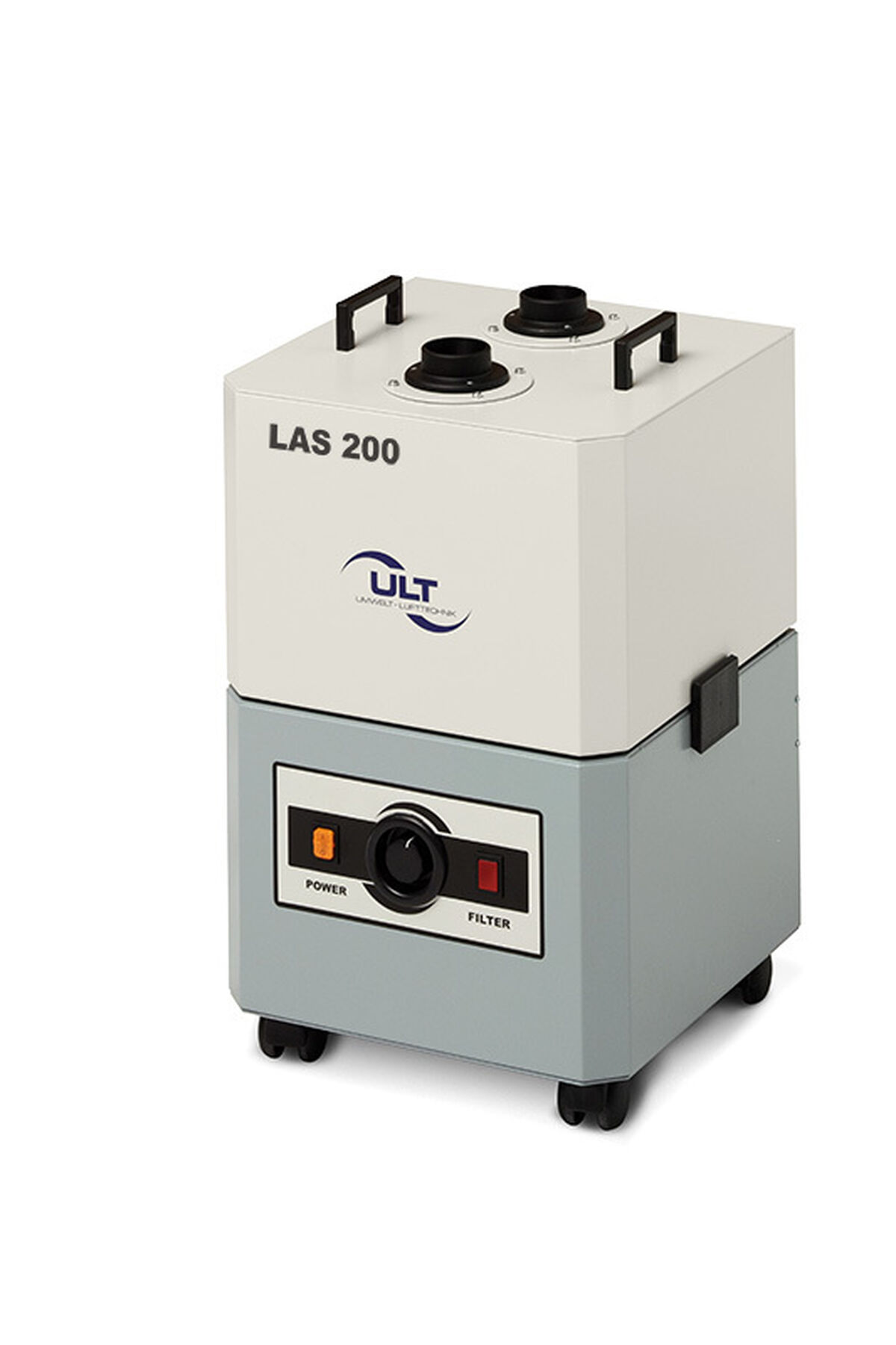

ULT LAS 200 Laser Fume Filtration Unit

The ULT LAS 200 storage filtration unit is primarily designed for low to medium laser fume processes.

Main Features
  • Mobile Extraction unit Castors
  • Modular Design

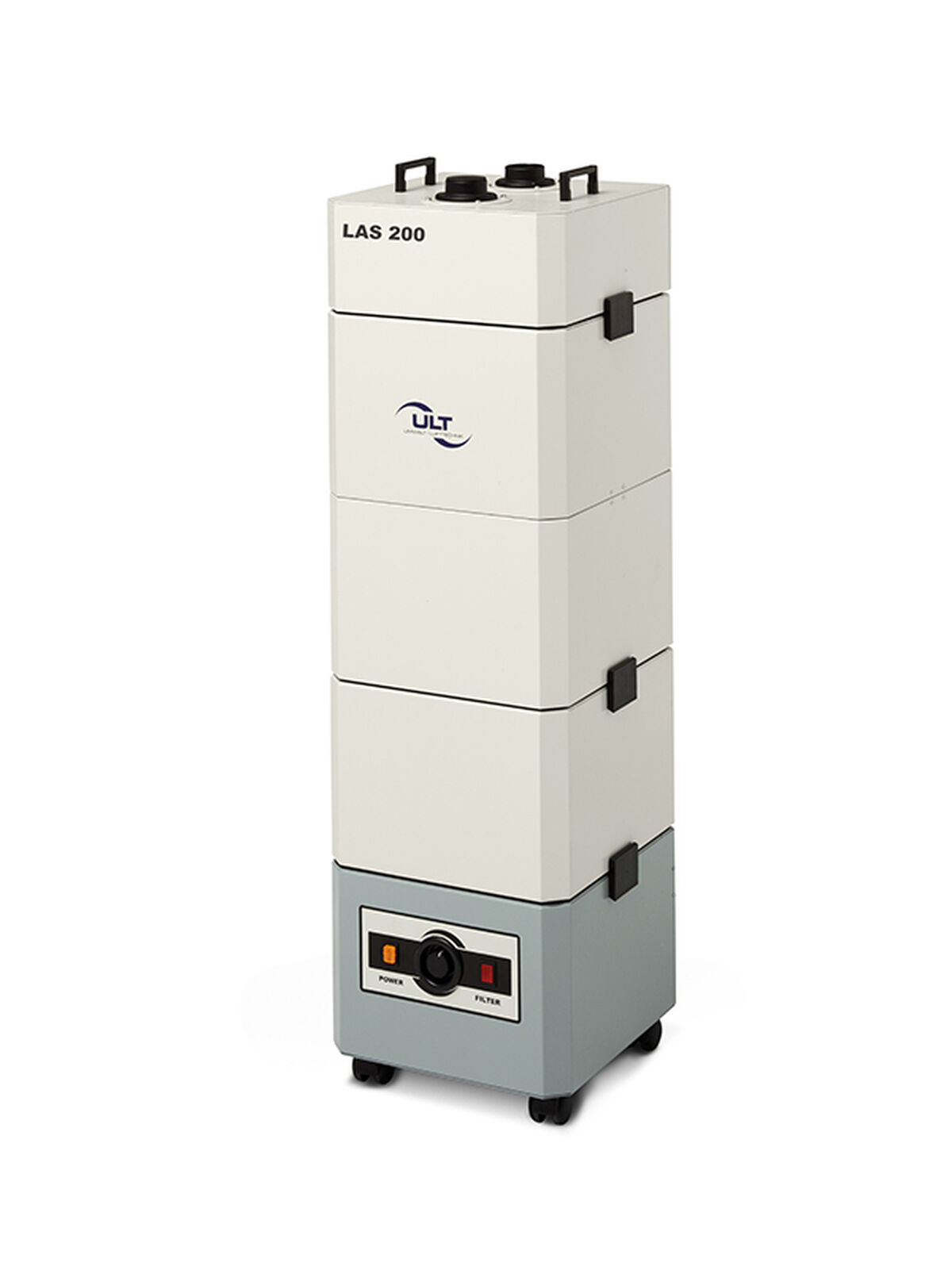

  • Height Dependant On Filter Utilisation
  • Volume Flow Control: Stepless Adjustment of Suction Capacity
  • Loaded Particle Filter Indicator
  • Powder-coated, Rugged Steel Housing

Options:

  • Interface SUB D9. Standard configuration, remote ON/OFF, Operation Status and Filter Saturation Status.
Manufactured to Order

£POA

Excluding delivery cost, optional installation and on-site training.

Manufacturer:ULT AG

Description & Features

The LAS 160 is a stationary or mobile laser fume filtration unit suitable for small low level fume producing processes and comes with a storage based filtration system.

Storage filter units are mainly used, where the amount of laser fume is comparably small, for removal of sticky laser fumes and for odorous emissions. Dusts and gaseous pollutants are retained by the filtration systems and the purified air is fed back in the work area. At the end of their service lives, saturation filters shall be replaced.

Applications

  • Laser Welding
  • Laser Engraving
  • Laser Cutting
  • Laser Structuring
  • Laser Ablation
  • Laser Marking
  • Laser Printing

Technical Data

The ULT LAS 200 Laser Fume Filtration Unit is available in a number of configurations, detailed below. More may be available, so please call Flextraction on 01664 410 641 to discuss your requirements.

LAS 200 MD.11LAS 200 MD.14LAS 200 HD.10LAS 200 HD.12
Max. air flow (m³/h)190635210220
Max. vacuum (Pa)3,2003,20020,70022,000
Nominal capacity (m³/h/Pa)80/1,900250/2,000120/13,000120/12,000
Dimensions (WxDxH mm)390 x 400 x (610-1,270*)390 x 400 x (610-1,270*)390 x 400 x (610-1,270*)390 x 400 x (610-1,270*)
