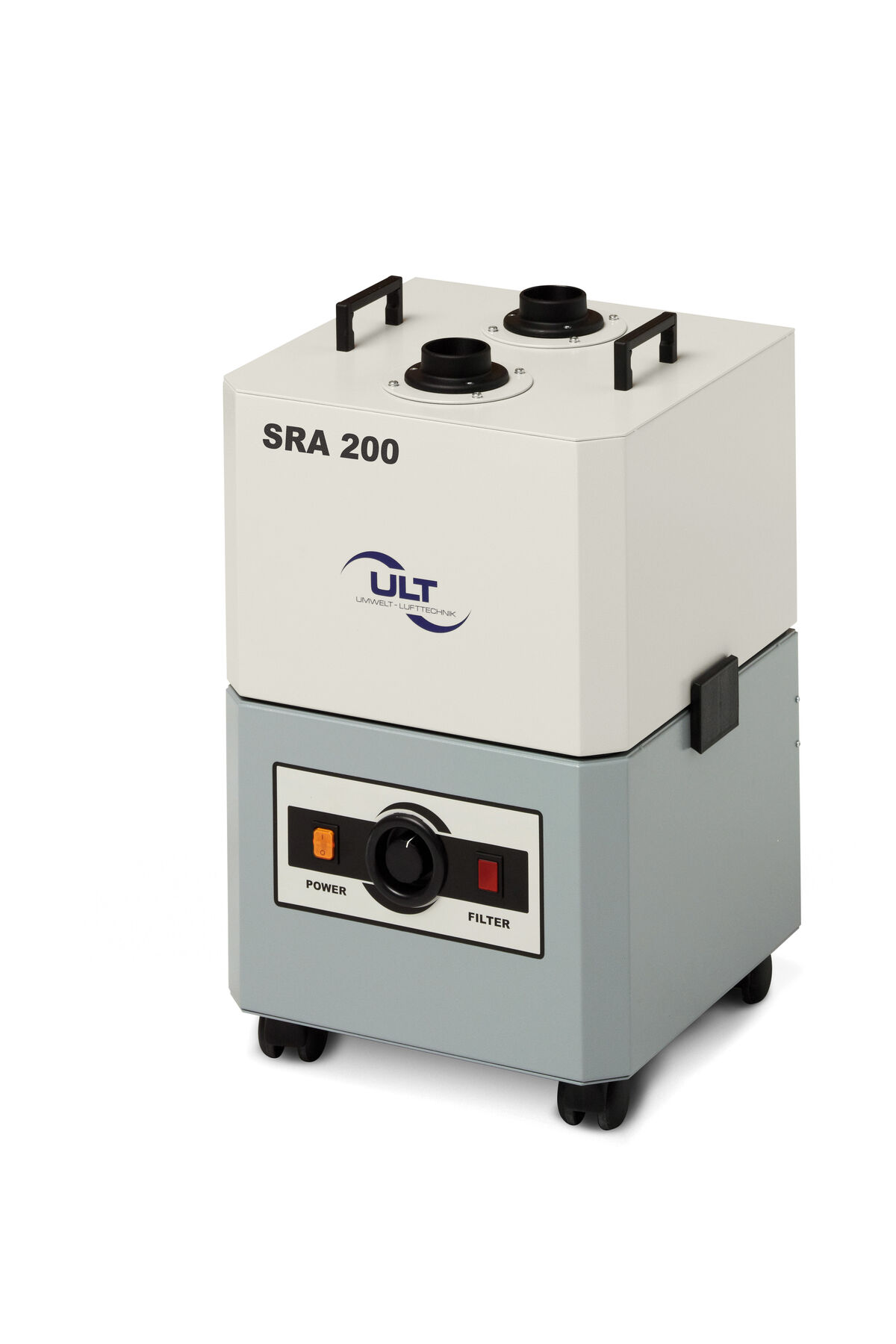

ULT SRA 200 HD.10 Welding Fume Filtration Unit

A fantastic mobile fume filtration and extraction unit, featuring a modular design and volume flow control.

Main Features
  • Mobile unit with castors
  • Simple filter handling
  • Modular design
  • Control elements on the front panel
  • Powder coated, rugged steel housing
  • Volume flow control: stepless adjustment of suction capacity
  • Loaded particle filter indicator: optical visualization
Manufactured to Order

£POA

Excluding delivery cost, optional installation and on-site training.

Manufacturer:ULT AG

Description & Features

A mobile & stationary filtration & extraction unit that is designed for the safe & efficient removal of welding fumes.  Perfectly suited for extraction at frequently changing work places.

Applications

  • Manual welding
  • MIG/MAG/TIG Welding
  • Gas welding

Properties

  • Expanded metal pre-filter, particle filter
  • Interface SUB D9: standard configuration, remote ON/OFF, operation status, filter saturation 100%

Technical Data

The ULT SRA 200 HD.10 Welding Fume Filtration Unit may be available in a range of configurations. Should you require a specification other than that shown, then please contact a member of our team on 01664 410 641 to discuss your requirements.

SRA 200 HD.10 Welding Fume Filtration UnitSRA 200 HD.12 Welding Fume Filtration UnitSRA 200 MD.11 Welding Fume Filtration UnitSRA 200 MD.14 Welding Fume Filtration Unit
Max Air Flow210 m3/h220 m3/h190 m3/h635m3/h
Max Vacuum20,700 Pa22,000 Pa3,200 Pa3,200 Pa
Nominal Capacity120 m3/h @ 13,000 Pa120 m3/h @ 12,000 Pa80 m3/h @ 1,900 Pa250 m3/h @ 2,000 Pa
