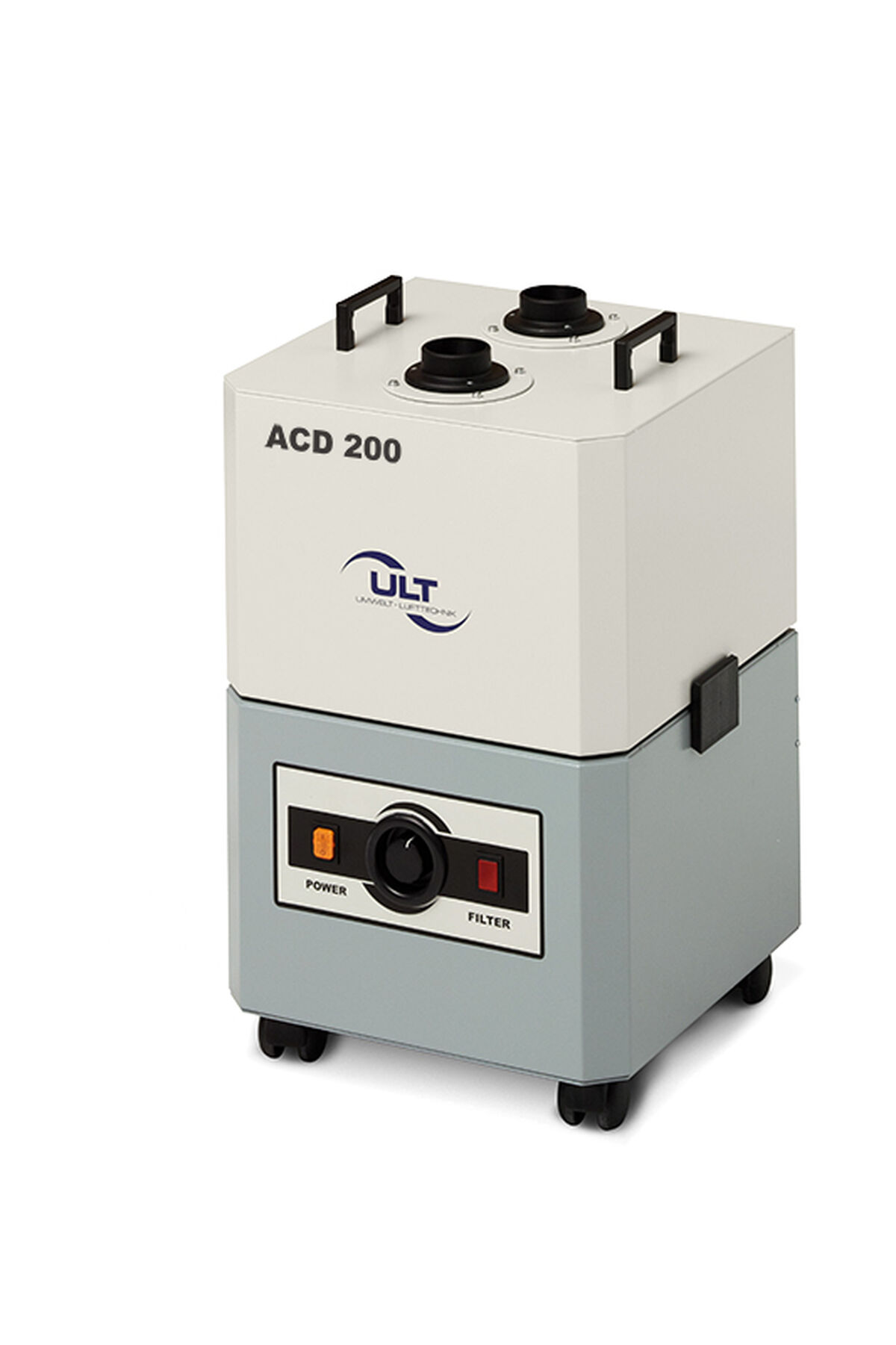

ULT ACD 200 HD 10 A6 Odour Gas & Vapour Filtration Unit
Exhaust and filter systems of the ACD series can be used for cleaning the air directly at the workplace. This will safely avoid harmful effects on both people and machines.
Main Features
- Low noise level
- Compact design
- High performance fan with low power consumption
- Recyclable filters with high capacity
- Easy to operate with uncomplicated maintenance & filter change
£POA
Excluding delivery cost, optional installation and on-site training.
| Manufacturer: | ULT AG |
|---|
Description & Features
A modular extraction and filtration system that is perfectly suited for use in the removal of vapours, odours and gases.
Applications
- Gluing & Casting
- Laminating & Coating
- Cleaning & Dosing operations in the chemical industry
- Electrical engineering / Electronics
- Precision mechanics
- Laboratories
- Food processing industry
- Pharmaceutical industry
- Restoration studios
- And more....
Properties
- Collector turbine
- Air Volume
- Loaded particle filter
Technical Data
The ULT ACD 200 HD 10 A6 Odour Gas & Vapour Filtration Unit may be available in a range of configurations. Should you require a specification other than that shown, then please contact a member of our team on 01664 410 641 to discuss your requirements.
| ACD 200 HD 10 A6 Odour Gas & Vapour Filtration Unit | ACD 200 HD 12 A6 Odour Gas & Vapour Filtration Unit | ACD 200 MD 11 A6 Odour Gas & Vapour Filtration Unit | ACD 200 MD 14 A6 Odour Gas & Vapour Filtration Unit | |
|---|---|---|---|---|
| Max Air Flow | 210 m3/h | 220 m3/h | 190 m3/h | 635 m3/h |
| Max Vacuum | 20,700 Pa | 22,000 Pa | 3,2000 Pa | 3,200 Pa |
| Nominal Capacity m³/h/Pa | 120@13,000 Pa | 120@12,000 Pa | 80@12,000 Pa | 250@2,000 Pa |
| Noise Level | 45 @ 50% - 49 @ 100% | 45Db @ 50% : 49Db @ 100% | 45Db @ 50% : 49Db @ 100% | 45Db @ 50% : 49Db @ 100% |
| Motor Size | 1.20Kw | 1.3Kw | 0.15Kw |
