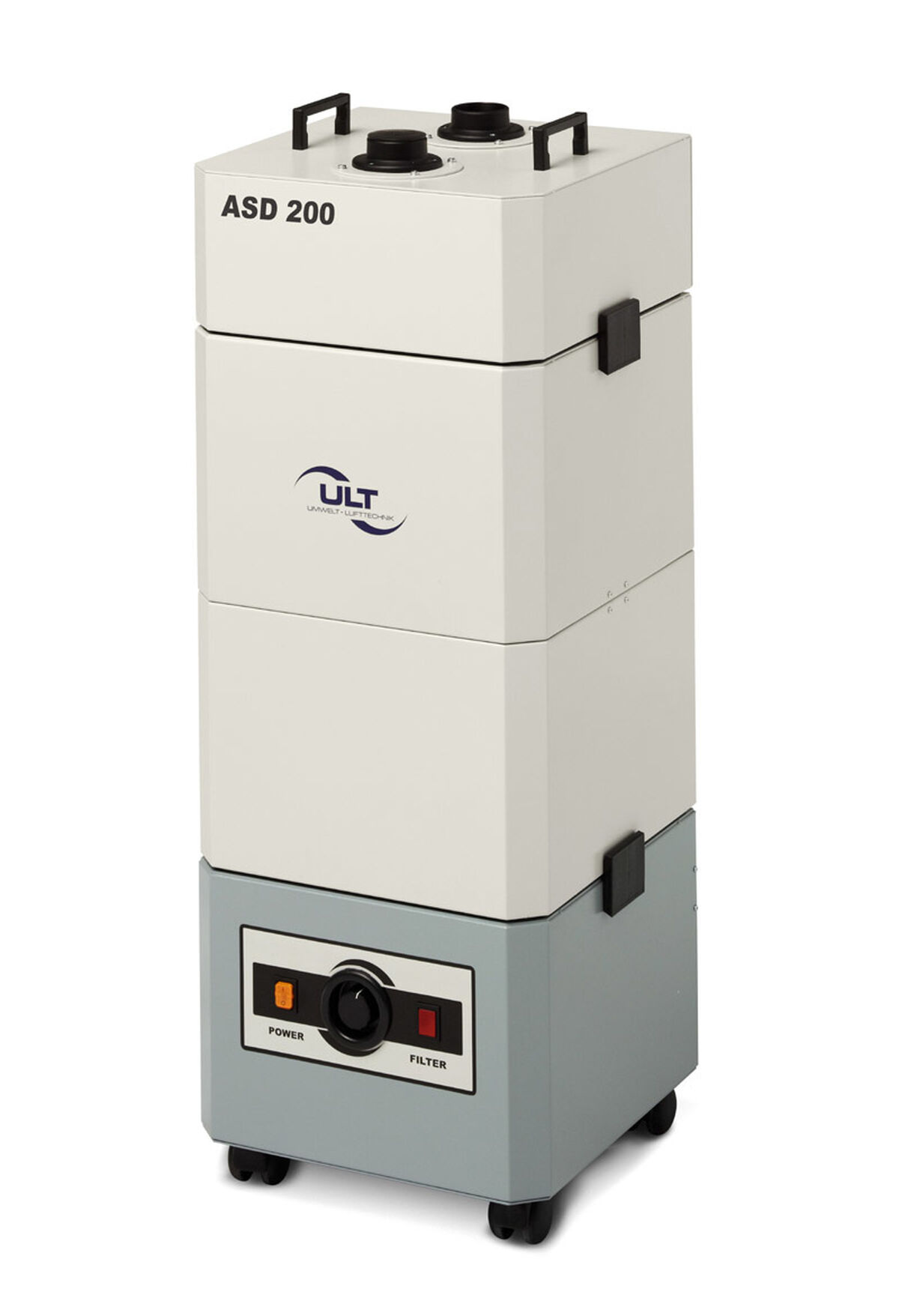

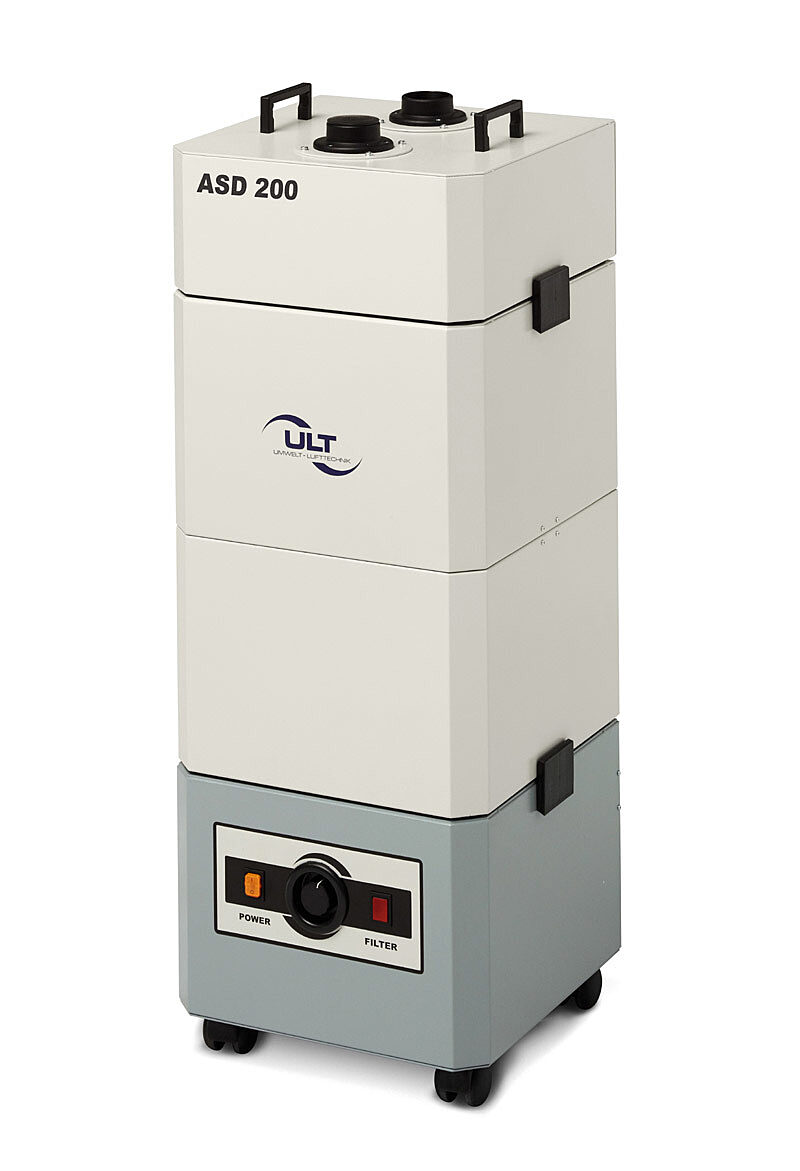

ULT ASD 200 MD 14 Dust & Smoke Filtration Unit

The ASD series is suitable for collecting and filtering dry, non combustible dusts within a non-explosive air mixture.

Main Features
  • Mobile unit with castors
  • Simple filter handling
  • Modular design and quiet operation
  • Control elements on the front panel
  • Powder coated, rugged steel housing
  • Volume flow control: step-less adjustment of suction capacity
  • Loaded particle filter indicator: optical visualization
Manufactured to Order

£POA

Excluding delivery cost, optional installation and on-site training.

Manufacturer:ULT AG

Description & Features

A modular extraction and filtration system that is perfectly suited for use in the removal of smoke and dust.

Applications

  • Grinding, engraving, polishing
  • Cleaning, abrading, trans filling etc.

Properties



Technical Data

The ULT ASD 200 MD 14 Dust & Smoke Filtration Unit may be available in a range of configurations. Should you require a specification other than that shown, then please contact a member of our team on 01664 410 641 to discuss your requirements.

ASD 200 MD 14 Dust & Smoke Filtration UnitASD 200 HD 10 Dust & Smoke Filtration UnitASD 200 HD 12 Dust & Smoke Filtration Unit
Max Air Flow635 m3/h210 m3/h220 m3/h
Max Vacuum3,200 Pa20,700 Pa22,000 Pa
Nominal Capacity250 m3/h @ 2,000 Pa120 m3/h @ 13,000 Pa120 m3/h @ 12,000 Pa
Noise Level<70 dB (A) @ 100%<70 dB (A) @ 100%<70 dB (A) @ 100%
Motor Size1.3Kw1.3Kw1.3Kw
